Data Collections

Data Collections simplify resource filtering, Insight analysis, and Bot configuration. This feature allows administrators to build out reusable data definitions--collections of strings--that can be used and reused when creating and updating Insights and Bots. The Data Collections can be associated with any number of the hundreds of filters in the product.

When you edit a Data Collection, all Insights and Bots that use that collection will automatically use the updated collection next time they run; you needn't repeat your edits across multiple Insights and Bots.

Example use case

Example Use Case

If you want to specify a list of trusted accounts, and disallow certain kinds of activity from all other accounts. You might set up Bots configured with these Insights:

  • Resource With Cross Account Access to Unknown Account
  • Network Peers Connected to Unknown Accounts
  • Service Role Trusting Unknown Account
  • Cloud Role Trusting Unknown Account

You'll configure all of these Bots with the same set of account numbers. Manually entering and updating the list of allowed accounts in all of these Bots is a tedious and error-prone process; Data Collections can make correctly managing these reused inputs fast and easy, even for sets of tens of thousands of strings.

A Data Collection can contain up to 4MB of strings, allowing you to manage tens of thousands of entries, defining the behavior of many Insights and Bots, in a single list. The admin creating or editing a Data Collection is responsible for ensuring the integrity of the collection, e.g., a list of accounts must contain only valid account numbers; Data Collections will not validate the entered lists.

Accessing Data Collections

Go to Cloud > Data Collections to get started.

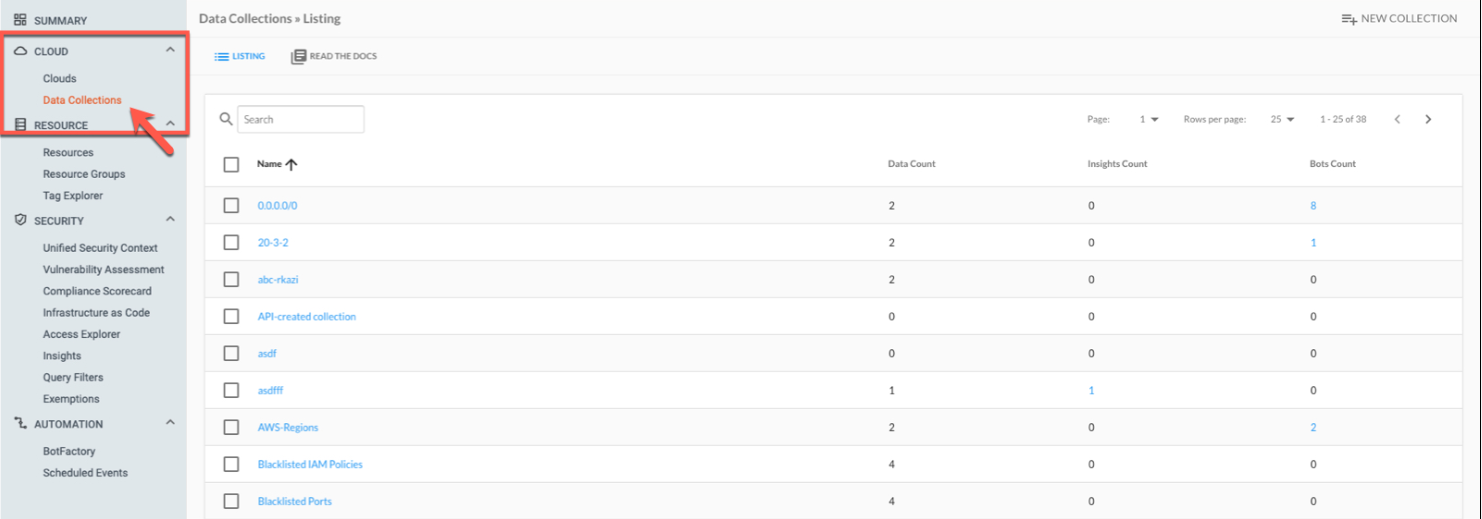

Data Collections Landing Page

Manage data collections

  1. Go to Cloud > Data Collections.
  2. To add a new collection, click New Collection and complete the details.
  3. To delete a collection, select the collection and click the Delete icon.
  4. To edit data collections, click the data collection to open the data collection edit window.
    • To rename the collection, click the Edit icon.
    • To add a new item, include the value (e.g. the input string - an account number), and a description, then click Add.
    • To delete an item, click the Delete icon.

Using Data Collections

The process described below demonstrates using data collections in filtering Resources. This process is the same working with Insights or Bots. For entering and editing large lists, refer also to the API documentation for Data Collections.

Create a New Data Collection

  1. Go to Inventory > Resources and select Query Filters.
  2. Use the search bar to find the name of the filter of interest, e.g., Resource Trusting Unknown Account.
  3. Click Apply and enter any tags, names, or other strings to configure the Query Filter.
  4. Select Create to create a new Data Collection containing these inputs.
  5. Use the Create modal that opens to name the new Data Collection. Data Collections must have unique names.

Import a CSV

Alternatively, Data Collections can be created by importing a CSV file:

  1. Go to Cloud > Data Collection and click New Collections.
  2. Select Choose a file to import your CSV.
  3. The CSV should be formatted using two columns for value-description pairs (not key-value pairs).
    • Each value has a max character limit of 255.
    • Each value must be unique within a data collection; duplicate values are ignored.
    • Empty values are automatically excluded.
    • The description is not required and does not have a character limit.
  4. After selecting the CSV and naming the new data collection, choose "Create" to complete importing. Data Collections are required to have unique names.

Using an Existing Data Collection

In the Resource Query Filters pane, you can select an existing Data Collection.

Using Data Collections Programmatically

Many use cases for Data Collections -- such as maintaining lists of hundreds or thousands of allowed accounts -- are best done programatically. To support these use cases, we've written the module provided below, which uses our REST API to create, populate, and update Data Collection contents. These functions can be imported directly and used as a module in your management scripts, or can be copied-and-pasted from as snippets.

python
1
"""
2
This collection of functions can help you programatically manipulate Data
3
Collections in InsightCloudSec using our REST API.
4


5
These functions are intended to be copied and pasted into your code, or can be
6
imported and used directly in your tools.
7
"""
8


9
from collections import Mapping
10
import json
11
import os
12
import requests
13
from requests.api import request
14


15


16
# Assumes the presence of these environment variables:
17
# INSIGHTCLOUDSEC_API_USER_USERNAME -- user we want to authenticate as
18
# INSIGHTCLOUDSEC_API_USER_PASSWORD -- user's password
19
# INSIGHTCLOUDSEC_BASE_URL -- base url for the InsightCloudSec instance to run against
20
# INSIGHTCLOUDSEC_API_KEY -- API Key to interact with the InsightCloudSec REST API
21
USERNAME, PASSWORD, BASE_URL, API_KEY = (os.environ['INSIGHTCLOUDSEC_API_USER_USERNAME'],
22
                                os.environ['INSIGHTCLOUDSEC_API_USER_PASSWORD'],
23
                                os.environ['INSIGHTCLOUDSEC_BASE_URL'],
24
                                os.environ['INSIGHTCLOUDSEC_API_KEY'])
25
BASE_HEADERS = {'Content-Type': 'application/json;charset=UTF-8',
26
                'Accept': 'application/json',
27
                'Api-Key': API_KEY}
28


29


30
def create_data_collection(collection_name, collection_data=None):
31
    """
32
    Create a new data collection with name `collection_name`, optionally
33
    populated with the values in the dictionary `collection_data`.
34


35
    `collection_data` should be one of 2 things:
36
    - a dictionary mapping Data Collection values to descriptions. Using `None`
37
      as a description will result in the description being set to the empty
38
      string.
39
    - an iterable of strings, which will be inserted as values with no
40
      descriptions.
41


42
    For example, the following is a valid input:
43


44
    ```
45
    {
46
        'value one': 'description for value one',
47
        'value two': None,  # description will be set to the empty string
48
        'value three': 'description for value three'
49
    }
50
    ```
51
    Or you can simply pass a list like `['first value', 'second value']`, which
52
    is equivalent to passing `{'first value': None, 'second value': None}`
53
    """
54


55
    data = {'collection_name': collection_name,
56
            'collection_data': normalize_collection(collection_data)}
57


58
    return requests.post(
59
        url=requests.compat.urljoin(BASE_URL, '/v2/datacollections/'),
60
        headers=BASE_HEADERS,
61
        data=json.dumps(data)
62
    )
63


64
def update_data_collection(collection_id, collection_data):
65
    """
66
    Update the existing data collection with integer ID `collection_id` using
67
    the data in `collection_data`.
68


69
    `collection_data` should be a dictionary mapping values to descriptions.
70
    Any new key: description value pairs will be inserted into the data
71
    collection; any whose key already exists in the Data Collection will be used
72
    to update the existing description value.
73


74
    Descriptions may be `None`. A description equaling `None` in a new entry
75
    will result in an empty description. For existing entries, a description
76
    equaling `None` will result in no changes to an existing description;
77
    setting a description to the empty string must be done explicitly. For
78
    example:
79


80
    ```
81
    {
82
        # set the description for an existing value 'value one', or create a
83
        # new value with that description
84
        'value one': 'description for value one',
85
        # leave the description for an existing value 'value two' unchanged, or
86
        # create a value 'value two' with no description
87
        'value two': None,
88
        # empty the description for an existing value 'value three', or create
89
        # a new value with an empty description
90
        'value three': ''
91
    }
92
    ```
93
    Note that this operation does not remove any entries from the data
94
    collection.
95
    """
96
    url = requests.compat.urljoin(
97
        BASE_URL,
98
        requests.compat.urljoin('/v2/datacollections/', str(collection_id))
99
    )
100


101
    result = requests.post(
102
        url=url,
103
        headers=BASE_HEADERS,
104
        data=json.dumps({'collection_data': normalize_collection(collection_data)})
105
    )
106
    return result
107


108


109
def delete_data_collection_values(collection_id, values_to_delete):
110
    """
111
    Delete all entries with values in the iterable `values_to_delete`.
112


113
    Note that this is a 2-phase operation: this first checks that the values
114
    exist and gets their IDs within the collection, then sends the request to
115
    delete them. This means that calling this method concurrently with other
116
    data collection manipulation could have unexpected results.
117
    """
118
    url = requests.compat.urljoin(
119
        BASE_URL,
120
        requests.compat.urljoin('/v2/datacollections/', str(collection_id))
121
    )
122


123
    # phase 1: grab existing entries
124
    collection_result = requests.get(
125
        url=url, headers=BASE_HEADERS
126
    )
127
    existing_values_to_ids = {
128
        datum['value']: int(datum['id'])
129
        for datum in collection_result.json()['collection']['data']
130
    }
131


132
    # pre-deletion check: we should only try to delete entries that exist
133
    if not set(values_to_delete) < set(existing_values_to_ids):
134
        raise ValueError(
135
            'Some values to be deleted not in existing data '
136
            'collection: {}'.format(set(values_to_delete) - set(existing_values_to_ids))
137
        )
138
    # phase 2: delete specified entries
139
    return requests.delete(
140
        url=url,
141
        headers=BASE_HEADERS,
142
        data=json.dumps({
143
            'data_ids': [existing_values_to_ids[value] for value in values_to_delete]
144
        })
145
    )
146


147
def normalize_collection(collection_data):
148
    if isinstance(collection_data, Mapping):
149
        return collection_data
150
    return {datum: None for datum in collection_data}
