Malleable C2 Profiles

Malleable C2 profiles let you customize the network traffic patterns of Metasploit’s Meterpreter payloads so that the C2 communication blends in with legitimate traffic. Rather than sending traffic that looks like Metasploit, a profile can make beacon requests resemble requests to Reddit, a CDN, or any other common service.

This is particularly useful for evading network intrusion detection systems (NIDS) and other traffic-inspection tools that look for the default HTTP request patterns Meterpreter uses out of the box. By shaping URIs, headers, and body encoding to match expected traffic for a given environment, you can significantly reduce the chance of detection during a penetration test.

The malleable C2 profile format was originally introduced by Cobalt Strike. Metasploit Pro implements a subset of the Cobalt Strike profile language — enough to shape real-world traffic — while accepting (but ignoring) directives it does not implement, so most real Cobalt Strike profiles will load without error.

This feature requires Metasploit Pro version 5.1 or later.

Supported Payloads

Malleable C2 profiles apply to reverse HTTP/HTTPS Meterpreter payloads. Some examples of supported payloads:

• windows/meterpreter_reverse_http / windows/meterpreter_reverse_https
• windows/x64/meterpreter_reverse_http / windows/x64/meterpreter_reverse_https
• windows/meterpreter/reverse_http / windows/meterpreter/reverse_https
• linux/x64/meterpreter_reverse_http / linux/x64/meterpreter_reverse_https (and other Linux architectures)
• php/meterpreter_reverse_http / php/meterpreter_reverse_https
• python/meterpreter_reverse_http / python/meterpreter_reverse_https
• java/meterpreter_reverse_http / java/meterpreter_reverse_https

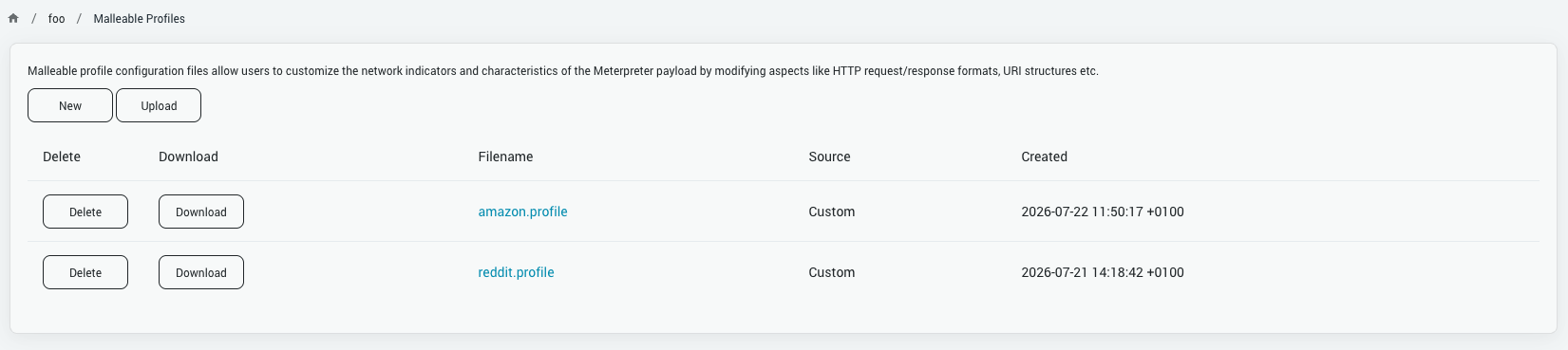

Accessing Malleable Profiles Malleable profiles are managed from the Malleable Profiles page. To access it, select Modules > Malleable Profiles from the workspace tab bar.

The page lists all available profiles in two groups:

• Custom — profiles you have uploaded or created within Metasploit Pro. These can be edited, downloaded, and deleted.
• Framework — profiles bundled with the Metasploit Framework. These are read-only and can be downloaded but not modified.

Creating a New Profile

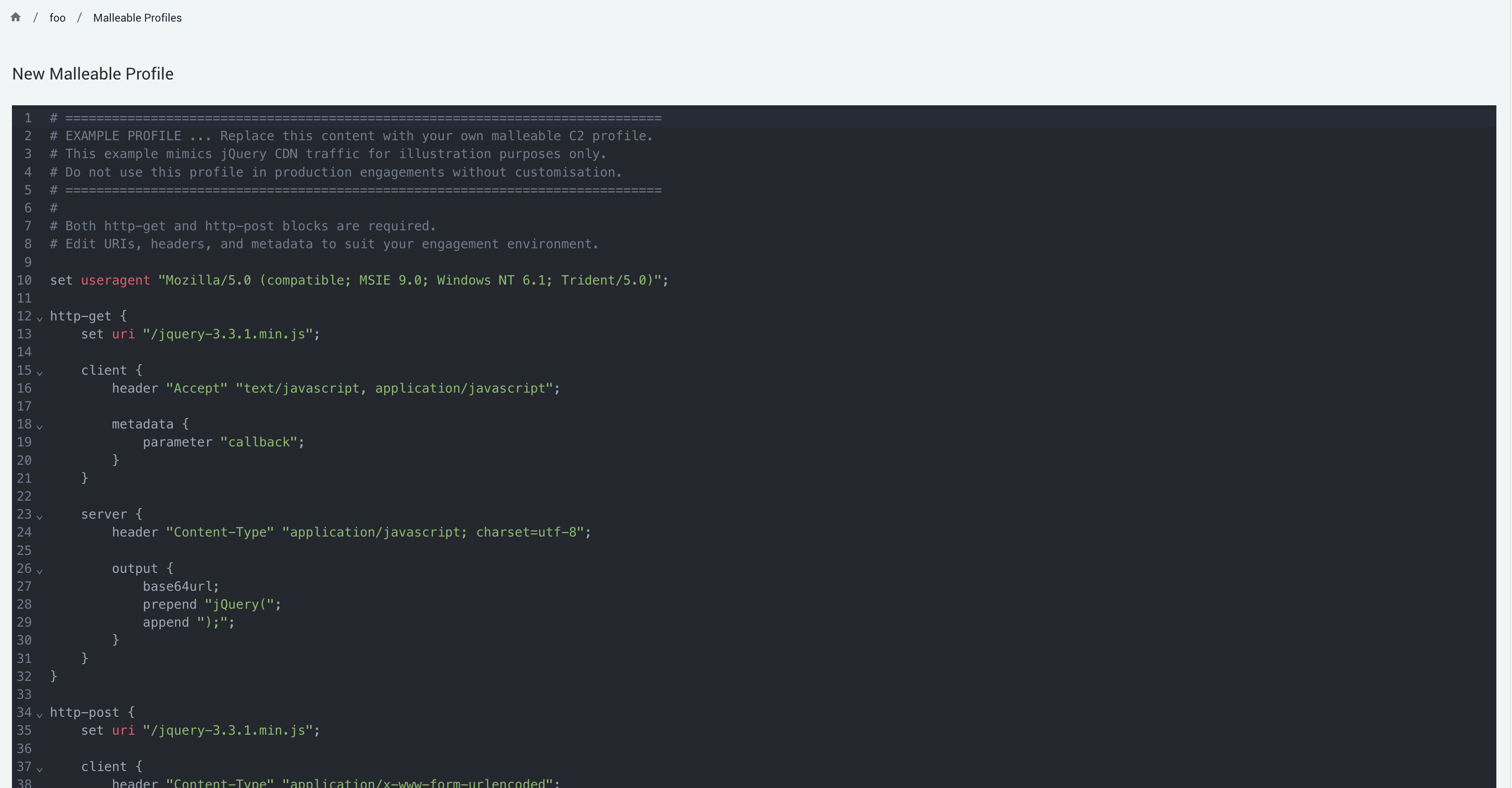

To write a profile from scratch, click the New button on the Malleable Profiles page.

1. Write or paste your profile content into the editor.
2. Click Save Profile.
3. Enter a Filename for the profile (e.g. my-profile.profile).

Metasploit Pro validates the profile content before saving. The profile must:

• Not be empty.
• Contain both a http-get block and a http-post block.

If validation fails, an error message will appear and the file will not be saved.

Uploading an Existing Profile

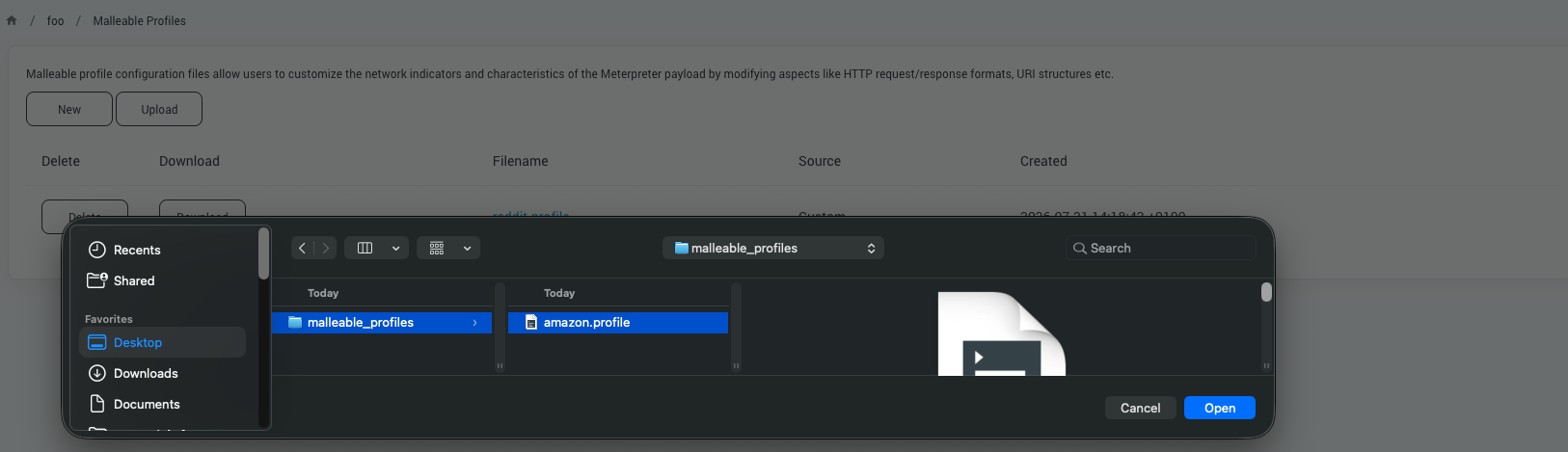

If you already have a .profile file, click Upload on the Malleable Profiles page and select the file.

The same validation rules as above apply here as well.

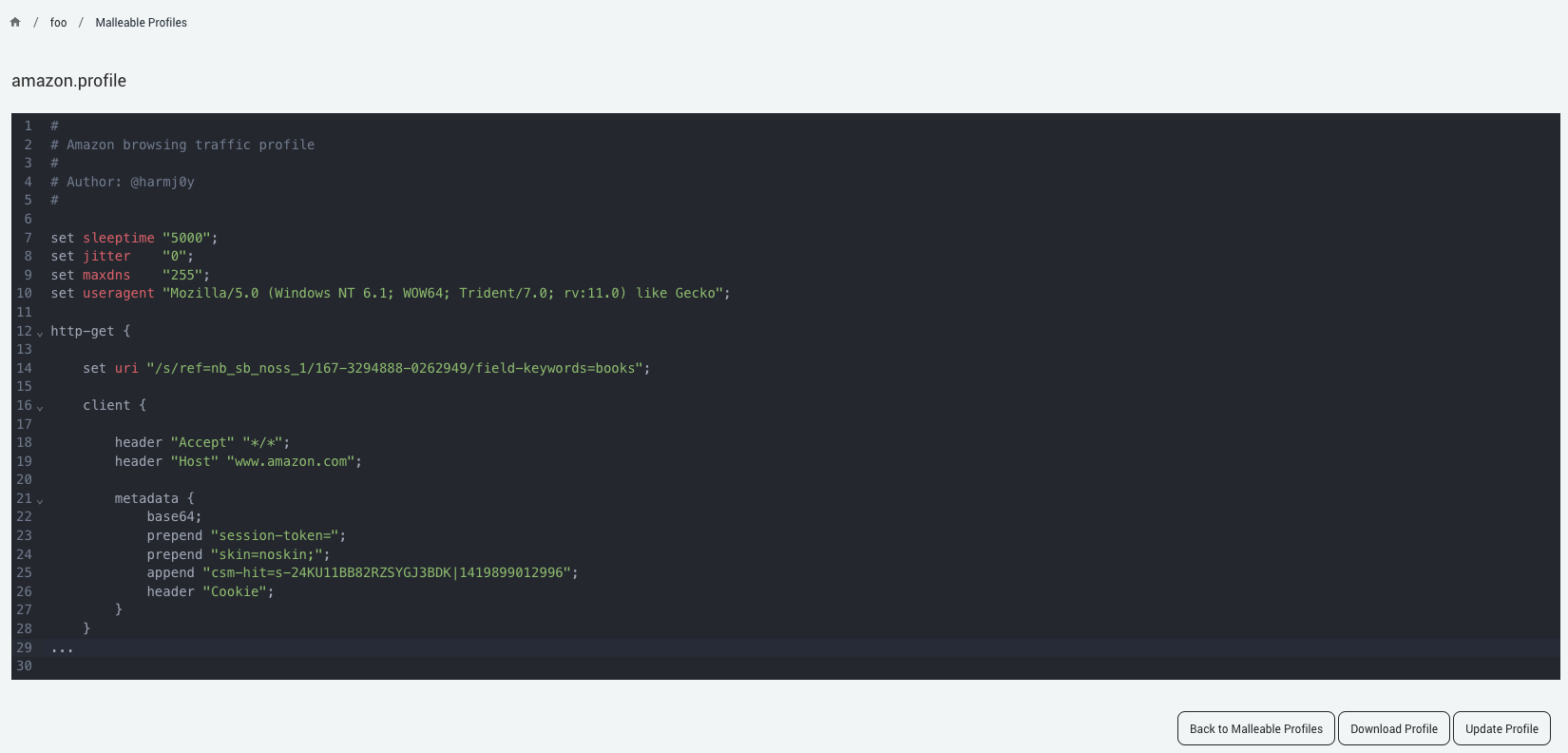

Viewing and Editing a Profile

Click any profile filename in the list to open a page containing the profile contents. Custom profiles can be edited via the built-in editor. Framework profiles open in read-only mode and cannot be edited.

To update a custom profile, make your changes in the editor and click Update Profile. The same validation runs before the file is written.

You can click Download Profile on any profile (custom or framework) to save a copy of the file locally.

Using a Profile with a Listener

Malleable C2 profiles are applied when configuring a listener. Both the listener and the generated payload must use the same profile — the listener uses it to shape its HTTP responses and recognize the expected request patterns, and the payload uses it to shape the requests it sends.

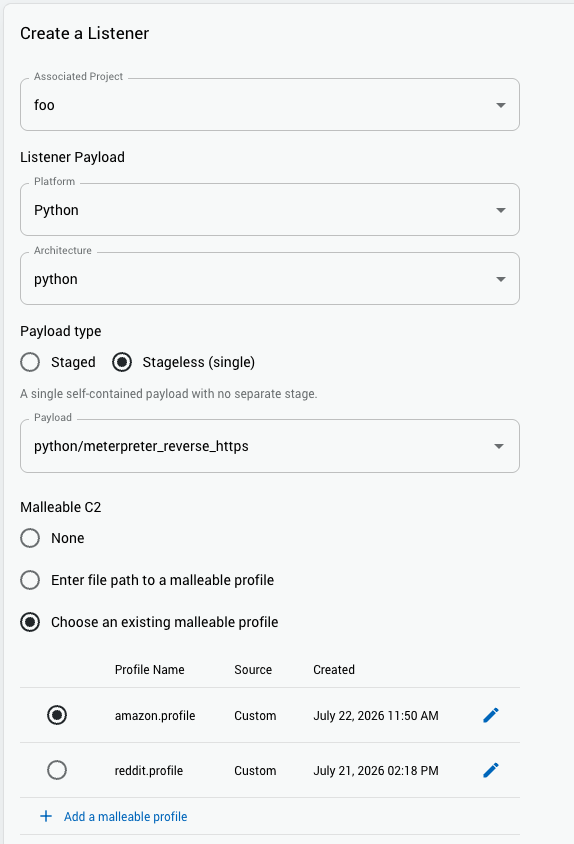

To attach a profile to a listener in Metasploit Pro:

1. Navigate to Global Settings -> Persistent Listeners -> New Listener.
2. Select a reverse HTTP or HTTPS Meterpreter payload.
3. In the Malleable C2 Profile section, choose one of the available options:
   • None — no profile; Meterpreter uses its default traffic patterns.
   • Choose an existing malleable profile — select from the profiles listed in your Malleable Profiles page.
   • Enter file path to a malleable profile — specify an absolute path to a .profile file on the Metasploit Pro server’s filesystem.

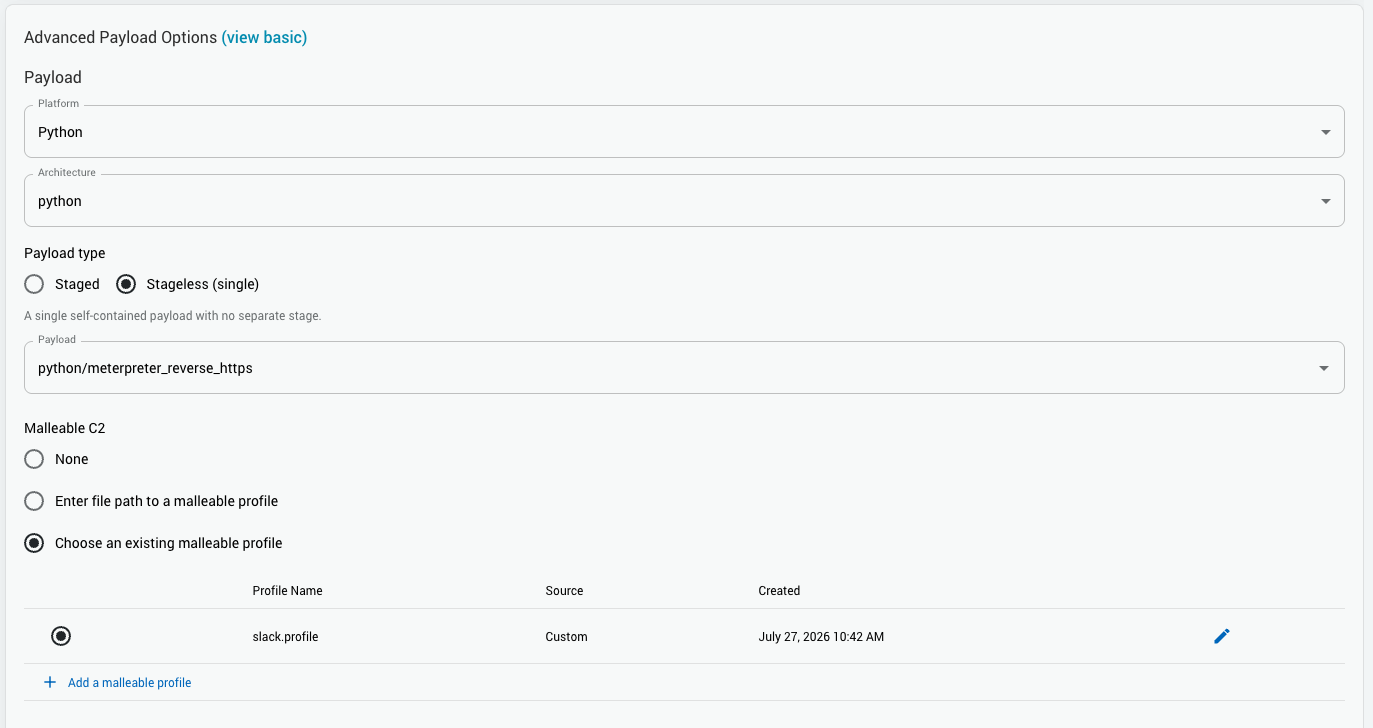

Using a Profile with an Exploit Module

Malleable C2 profiles can also be applied when running individual exploit modules through the Single Module Run interface, not just standalone listeners. This lets you shape the Meterpreter C2 traffic for sessions opened by an exploit, the same way you would for a dedicated listener.

To configure a module with a Malleable C2 profile, navigate to the Advanced Payload Options. The options are the same as on the listener configuration:

• None — no profile; Meterpreter uses its default traffic patterns.
• Choose an existing malleable profile — select from the profiles managed on your Malleable Profiles page.
• Enter file path to a malleable profile — specify an absolute path to a .profile file on the Metasploit Pro server.

Profile Syntax

A malleable C2 profile is a plain text file consisting of set key "value"; statements and named { } blocks. Line comments use # and string escapes follow C conventions (\r, \n, \t, \", \\, \xNN).

A minimal valid profile that satisfies Metasploit Pro’s requirements looks like this:

set useragent "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36";

http-get {
    set uri "/updates/check";

    client {
        header "Accept" "application/json";

        metadata {
            base64url;
            parameter "v";
        }
    }

    server {
        header "Content-Type" "application/json";

        output {
            base64;
            prepend "START_";
            append "_END";
        }
    }
}

http-post {
    set uri "/updates/report";

    client {
        header "Content-Type" "application/octet-stream";

        id {
            base64url;
            parameter "uid";
        }

        output {
            base64;
        }
    }

    server {
        header "Content-Type" "text/plain";
    }
}

With this profile, GET check-ins go to /updates/check?v=<session-id> and POST data goes to /updates/report?uid=<session-id> with a base64-encoded body.

Directives Honored by Metasploit Pro

Metasploit Pro implements a subset of the full Cobalt Strike profile language. The following directives actively change the wire traffic:

Directives Parsed but Not Honored

The parser accepts the full Cobalt Strike profile syntax so that real-world profiles load without errors. The following are recognized but have no effect on Metasploit Pro’s traffic:

Blocks ignored at runtime:

• https-certificate — SSL configuration is controlled by the handler’s own SSL options, not the profile.
• stage, http-stager — staging-related blocks; Metasploit’s staging behavior is not shaped by the profile.
• transform-x64, transform-x86 — binary transform blocks.
• Any other unrecognized block (e.g. dns-beacon, process-inject, post-ex).

Directive keywords accepted but not acted on:

add, dns, encode_hex, hostport, mask, netbios, netbiosu, print, remove, string, stringw, strrep, transform, unset, uri-append, uri-query, xor

Notably, print; — common in real Cobalt Strike profiles inside output { } blocks — is accepted but does nothing. Only base64, base64url, prepend, and append inside output { } blocks affect how Metasploit encodes or wraps data.
